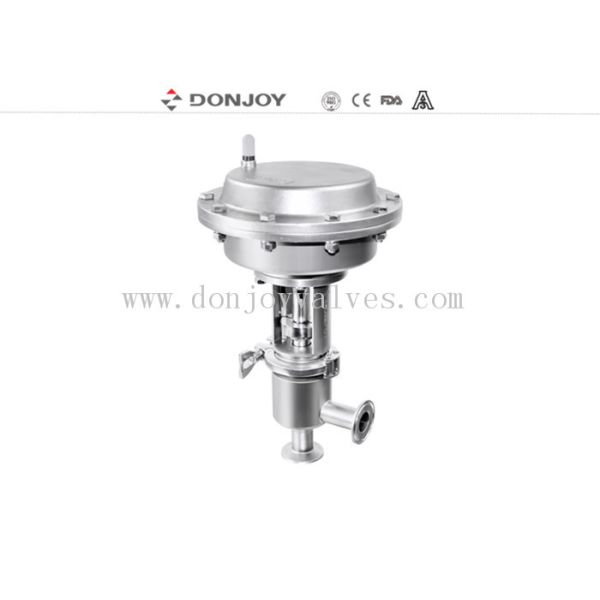

Diaphragm Regulating Valve with manual and pneumatic integrated type

Name: Diaphragm Regulating Valve with manual and pneumatic integrated type
Brand: DONJOY
Price: 1 USD

Quality Diaphragm Regulating Valve with manual and pneumatic integrated type for sale

Brand Name : DONJOY

Certification : CE,3A,FDA

Place of Origin : CHINA

MOQ : Negotiation

Payment Terms : T/T, LC, Credit Card

Packaging Details : carton box

Product Name : Diaphragm Regulating Valve

Size : DN25-DN300 or 1" - 12"

Operation : manual and pneumatic integrated type

Materials : SS 304 / 316

Gasket : EPDM

Function : Flow control

Contact Now

Diaphragm Regulating Valve with manual and pneumatic integrated type

Description
Options for Regulating Valve
Heat Jacket type regulating valve
Diaphragm-Aseptic Regulating valve
Non-Retention Regulating Valve
Aseptic Regulating valve
Deadline regulating valve
Manual Regulating valve
High pressure actuator regulating valve
Body Combination Type: 20,30,11,12,21A,22A

Specification

Product Name:	Diaphragm Regulating Valve with manual and pneumatic integrated type
Valve Body Material:	AISI304, AISI316L
Seal Material:	EPDM/HNBR/VITION(optional)
Working Pressure:	10Bar
Max. Working Temperature	-10 degree to 120 degree (EPDM )
Available size:	DN25-DN300 or 1" - 12"
Available connection:	CLAMP, DIN, SMS
Air Operation:	can be configured to intelligent/C-TOP controller
Operate:	Manual and pneumatic integrated type
Certificate:	FDA,CE
Body Combination Type	20,30,11,12,21A,22A
Compressed air pressure	6 - 8 bar / 87 - 116 PSI

Operating Principles
The position of valve tapered plug is adjusted by position.So as to control flow rate through the valve(PD).Besides, the intelligent process controller can control position and flow rate(PID)
Design and function
Designed according to 3A sanitary standard.
Normally closed valve (standard version)
Adjusting shaft of equal percent
360 degree adjustable valve body
With compact design

Technical features
Material in connecting part: AISI 316L / 1.4404
Material in other parts: AISI304 / 1.4301
Material of seal ring: EPDM / FDA 177.2600
Internal surface finish: Ra≤0.6μm
Jacketed heat valve body ( optional )
Shaft sterilization / cleaning ( optional )
Actuator with higher pressure ( optional )
Gasket: EPDM/HNBR/VITON ( optional )
Connection standard: DIN / SMS / RJT / IDF / ISO

Technical data
Diaphragm Regulating Valve with manual and pneumatic integrated type

Diaphragm Regulating Valve with manual and pneumatic integrated type
